Emergency Exit Light, White LED (Double Face)
Original price
$115.00
-
Original price
$115.00
Original price
$115.00
$115.00
$115.00
-
$115.00
Current price
$115.00

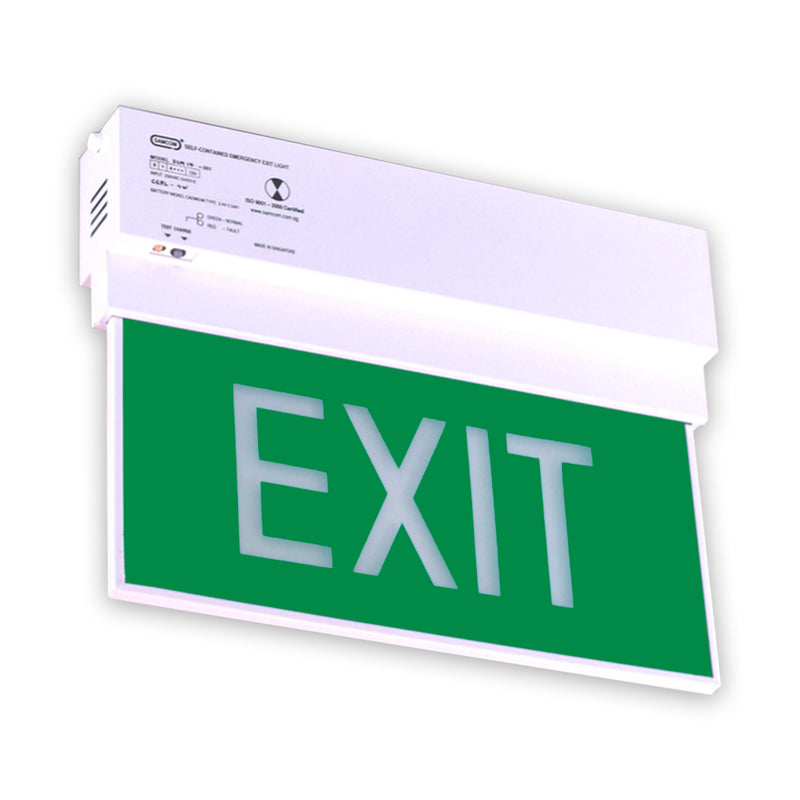

Self Contained White LED Emergency Exit Light
- Slim and Lightweight
- Low Power Consumption
- Low EMI
- Easy and Fast Installation

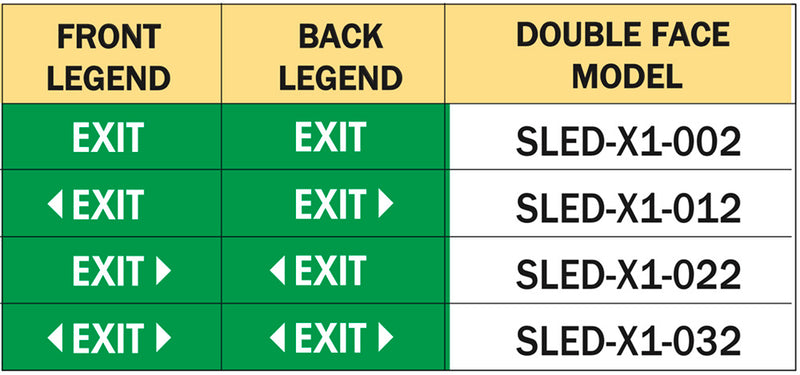

4 Options Available (Double Face)
Specially equipped with a customised proprietary Hybrid IC and a very high efficiency current feed push-pull sine wave inverter, to fully utilise the battery power and to prevent the frequent blackening of the tube.
Suitable for Factories, Schools, Stadiums, Banks, Hotels, Computer Rooms, Offices, Halls, Hospitals, Apartments, Warehouses, Carparks and more.
|
TECHNICAL SPECIFICATIONS
|
|
|
Input Voltage
|
230Vac 50/60Hz ± 10%, A:0.34PF:0.77
|
|
Battery
|
2.4V 2.5AH / 4.5AH High temp rated Nickel Cadmium cells or others
|
|
|
|
|
Rated Period
|
> 2 hrs, 3 hrs or others
|
|
Mode
|
Maintained
|
|
Operation Temperature
|
ta 40 Degrees Celcius
|
|
Power Consumption
|
< 4VA
|
|
Charge Monitor
|
Super bright green LED 5mm Ø |
|
Recharge Period
|
16~24hrs
|
|
Emergency Luminance
|
> 8 cd/m2
|
|
Electromagnetic Field
|
17m gause @ 0.1m
|
|
Charger
|
Hybrid controlled charger
|
| Protection | Low volt cut-off to prevent battery over discharge |
| Incoming AC fuse and Battery DC fuse | |
| Tropical climate protection coating on hybrid control circuit | |
| Construction | Electrode galvanised sheet steel with epoxy powder coating |
| 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser | |
| Dimensions | (L) 358mm x (W) 60mm x (H) 278mm |
| Weight | 2.8kg (Net) / 3.40kg (Gross) |
| Compliance |
SS263-2/A2:2008, SS563-1:2010, SS563-2/A1:2013 |
