Emergency Exit Light, White LED (Single Face)
SLED-X2 Emergency Exit Light
✔️ Wall Mounting Bracket: Optimized for flush, secure single-face wall installation
✔️ Self-Contained Emergency Exit Light
✔️ Super-Bright SMT White LED Luminaire with 30,000+ hour lifespan
✔️ Thin and Lightweight
✔️ Very Low Power Consumption
✔️ Customised Proprietary Hybrid IC Control System that minimizes electromagnetic interference (EMI)
✔️ Built-In Intelligent Circuit Protection
✔️ Suitable for Wall Mount, Wall Side Mount, Ceiling Recessed with Extra Panel, Ceiling Mount and Suspended Mount
✔️ Fast and Easy Installation
✔️ 1 Year Warranty
Key Features and Technology
Ultra-Low Power Consumption: Operates at less than 2W to drastically reduce energy overhead costs. costs compared to traditional incandescent or lower-grade LED emergency fittings.
Tropicalized Circuit Shielding: Sealed with a specialized protective coating to resist moisture, humidity, and challenging environments
Intelligent Circuit Protection: Built-in low-voltage cut-off safeguards prevent harmful battery over-discharge.
Dual-Fuse Fail-Safe System: Equipped with AC incoming and Battery DC fuses to shield internal circuitry from electrical spikes.
Operations & Mounting
Extended Emergency Backup: Delivers bright luminance (>8 cd/m²) for over 3 hours during power outages.
Premium Battery Options: Powered by high-temperature rated Nickel Cadmium (3.6V 0.9Ah) or Lithium Iron Phosphate (1.5Ah) cells.
Versatile Mounting Options: Supports Wall, Wall Side, Ceiling, Suspension, or Ceiling Recessed configurations (some require extra panel accessories).
✅ Ideal For: Factories, Schools, Stadiums, Banks, Hotels, Computer Rooms, Offices, Halls, Hospitals, Warehouses, Carparks, High-Traffic Public Spaces
✅ Compliance: SS263 Part 2, CP19:2000, IEC 60598-2-22:2014, S364
4 Options Available (Single Face)
Emergency Exit Light White LED (Single Face) SLED-X2 Specification
Input Voltage: 220~240Vac 50/60Hz ±10% (A: 0.019, Pf: 0.44)
Power Consumption: < 2W
Lamp Assembly: High-Brightness SMT White LED Strip (> 30,000 hrs life)
Emergency Duration: > 3 Hours
Luminance Rating: > 8 cd/m²
Recharge Cycle Time: 16 ~ 24 Hours
Cabinet Construction: Epoxy Powder Coated Electrode Galvanized Sheet Steel
Diffuser Material: Fire-Retardant Acrylic Diffuser

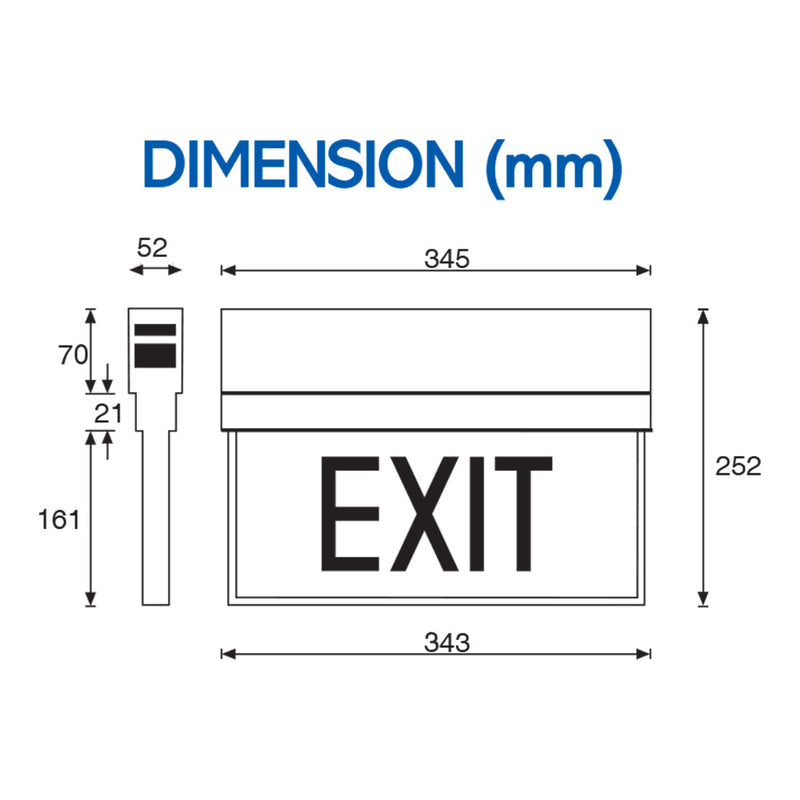

Housing Dimensions: 345mm (L) x 52mm (W) x 252mm (H)
Net / Gross Weight: 1.30 kg / 1.47 kg (with bracket assembly)
Knockout Configurations: 20mm Ø K/O Entry Hole
Compliance Codes: SS263 Part 2, CP19 : 2000, IEC 60598-2-22:2014, S364
Accessory Included: Wall mounting bracket (for single face)
Product Warranty: 1-Year Standard Factory Warranty
