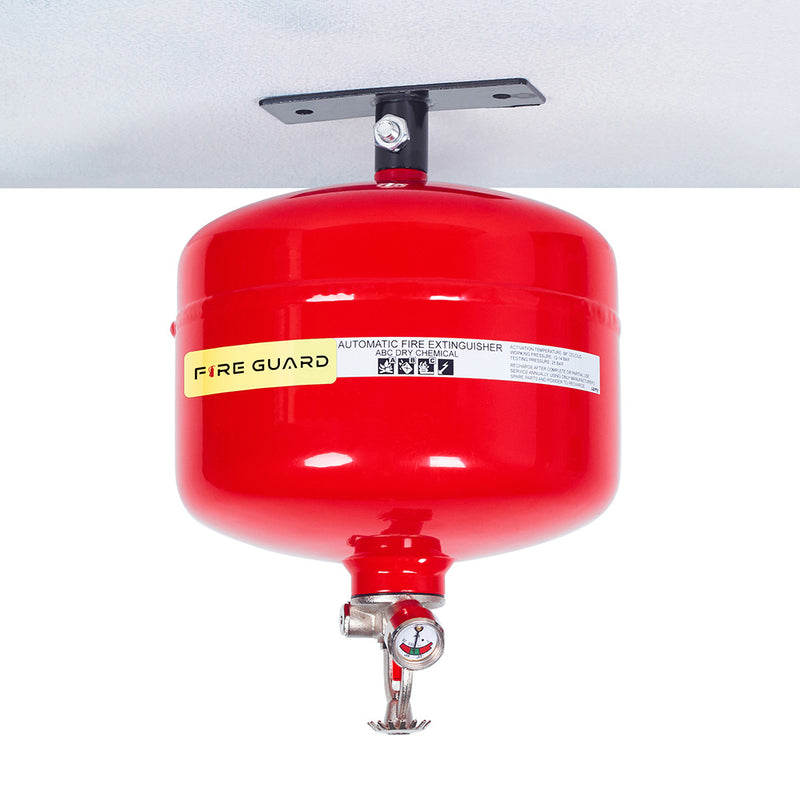

2.5KG Automatic Fire Extinguisher
⏳ 12.12 Sale ends in {timer}
5 Years Warranty on manufacturer defects
Suitable for Classes of Fire: A & B
Please take note that our ABC Fire Extinguishers are labelled Fire Classes A & B only because Class C fires are extinguished simply by switching off the main gas switch. The materials on flame tend to belong to Class A & B fires which can be extinguished by this fire extinguisher.
Automatically and effectively combats against Class A, B and C fires.
- Comes with Ceiling Mount
- T-bracket
- Conventional Sprinkler Head
- Automatically activated when temperature hits 68°C
This automatic fire extinguisher is a fixed fire fighting unit that operates automatically. It is chosen over other manual dry powder fire extinguishers when it is to be placed in unmanned locations that pose a fire risk or facilities with little manpower to oversee.
|

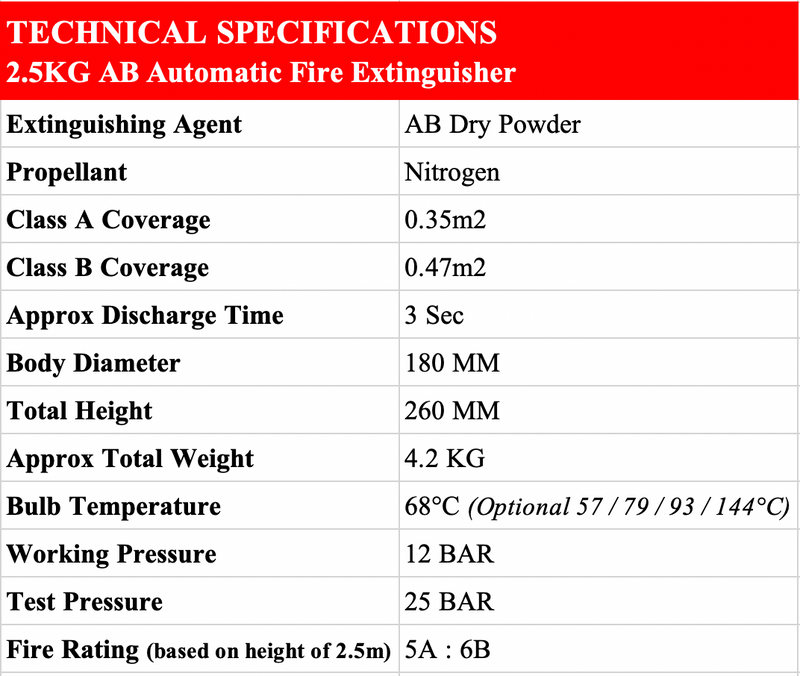

TECHNICAL SPECIFICATIONS
|
|
|
Extinguishing Agent
|
AB Dry Powder
|
|
Propellant
|
Nitrogen
|
|
|
|
|
Body Diameter
|
180 MM
|
|
Total Height
|
260 MM
|
|
Bulb Temperature
|
68 °C (Optional 57 / 79 / 93 / 144 °C)
|
|
Approx Total Weight
|
4.2 KG
|
|
|
12 BAR |
|
Test Pressure
|
25 BAR
|
|
Fire Rating
(Based on a height of 2.5M)
|
5A : 6B
|
|
Class A Coverage
|
0.35m2
|
|
Class B Coverage
|
0.47m2
|
Installation:
The automatic fire extinguisher should be installed directly adjacent and above the fire risk, with its discharge novel directed vertically downwards, and in a non-vibrating environment.
How It Works:
Automatic fire extinguishers are fitted with a heat activation glass bulb sprinkler head. It is designed to break when the temperature hits 68 Degrees Celsius, where it will automatically release its seal to allow a full discharge of the dry powder onto the fire.
Commonly Used Areas:
- Engine Compartments
- Generator and Industrial Pump Rooms
- Switch Rooms
- Boats and Vehicles
