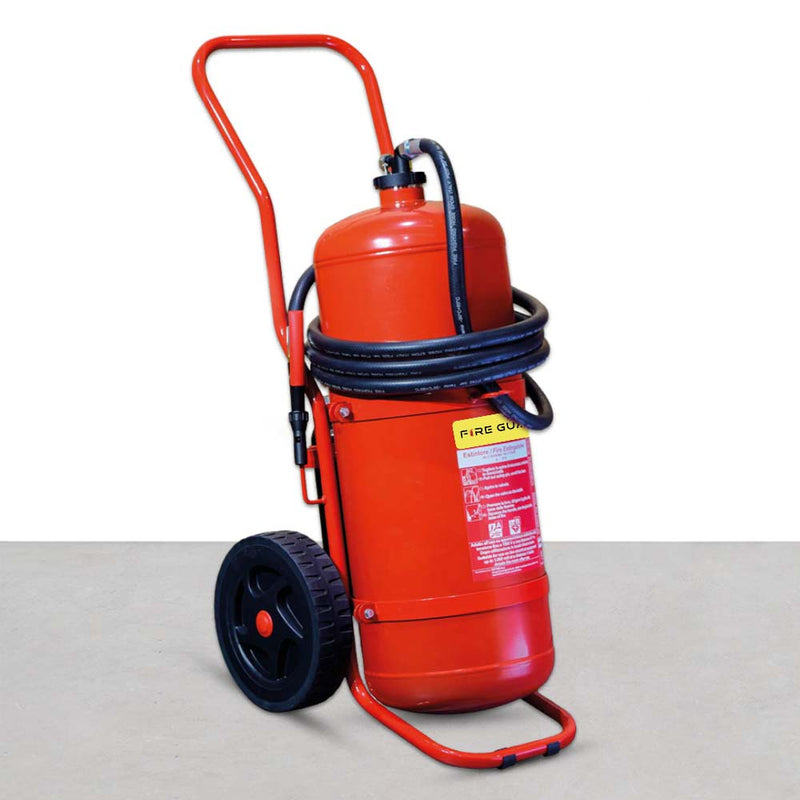

50L Foam Cartridge Wheeled Marine Fire Extinguisher
Lead Time: 8-12 weeks upon confirmation of order. Pre-order now!
Fluorine-Free Foam Trolley Fire Extinguisher for Marine Use
The FB7 50L Foam Trolley Fire Extinguisher (Cartridge, MED) is built for large-scale fire safety in demanding environments. Designed as a mobile unit, this extinguisher lets a single operator quickly move high-capacity fire protection where it is needed most.
The foam agent coats liquid fuels and solid materials, smothering the flames and blocking oxygen. It cools the hot surfaces at the same time to prevent reignition.
Key Features & Engineering
- Fluorine-free
- PFAS, PFOA and PFOS-free
- Separated Frame
- Stainless Steel Cylinder
- N2 External Cartridge
- Dielectric Nozzle (Suitable on electrical equipment with voltage up to 1000V
PED-Certified Stainless Steel Cylinder: 3-piece stainless steel body (Ø315 mm) finished with a high-durability red polyester powder coating for maximum corrosion resistance. Fully certified under EU Directive 2014/68/EU (PED).
Hard-Anodized Cap (M74x2): Precision-machined, anodized aluminum cap fitted with a PED-approved safety relief valve.
External Nitrogen (N₂) Propellant: Heavy-duty black steel cylinder (T-PED certified 2010/35/EU) paired with a PED-certified brass handwheel valve and integrated safety burst disc.
Long-Reach Discharge Hose: 5-meter heavy-duty EPDM rubber hose complete with an ergonomic squeeze pistol and non-conductive dielectric nozzle.
Weld-Free Safety Frame: Polyester powder-coated steel wrap-around frame isolated from the cylinder body. The non-welded design eliminates stress corrosion and potential leak points.
Heavy-Duty All-Terrain Wheels: Large Ø300 mm rugged wheels built with 80 Shore rubber and polypropylene copolymer (PP/C) hubs for effortless maneuvering across rough terrain.
✅ Ideal For: Marine & Shipping, Industrial & Manufacturing, Logistics & Transport
✅ Effective Against Class A & B Fires
Under SCDF regulations, fire extinguishers in Singapore no longer display icons for gas or electrical fires. SCDF recommends isolating the energy source (gas or electricity) before tackling the fire. Once the source is shut off, the fire typically involves Class A or B materials, which this extinguisher is highly effective against.
✅ Compliance: PED 2014/68/UE, MED 2014/90/UE, EN 1866-1:2008
Maintenance, Servicing, and Renewal of Fire Extinguishers
For Commercial & Maritime Users: Annual servicing is a mandatory requirement under Singapore Standard SS 578 and marine safety regulations. Your mobile fire extinguishers must be inspected, tested, and certified every year.
Need a Service Tag? Contact Us to book your annual fire extinguisher servicing,
*Do note that photos are for illustration only.
50L Foam Cartridge Wheeled Marine Fire Extinguisher Specifications
Extinguishing Agent: EcoSafe X (PFAS Free)
Propellent: Nitrogen or Dehumidified Air
Operation Method: Cartridge Operated
Test Standard: EN 1866
Throw Distance: ≥ 11 Meters
Operating Pressure: 14 Bar at 20°C
Operating Temperature:+0°C – +60°C
Cylinder's Diameter: 315MM
Approx Total Weight: 81KG
Wheel Diameter: 300MM
Height: 108MM
Test Pressure: 28 Bar
Discharge Time: ≥ 240 Seconds
